Dissolved Oxygen Sensor(polarographic) HOMS
- Overview
- Specifications
- Applications
- Download
- Dissolved Oxygen Sensor(polarographic).
Specifications:
| Type | HOMS11 | HOMS12 | HOMS13 |
| Measurement Principle | polarographic | polarographic | polarographic |
| Measuring range | 0-200.0 ppb/0-40.00 ppm | 0-20.0 ppm/0-200 ppmm | 40 ppb-40.00 ppm |
| Temperature range | 0-60 ℃ | 0-130 ℃(disinfection); 0-80 ℃(measuring); |
0-60 ℃ |
| Pressure | 5 bar(at 25 ℃) | 5 bar(at 25 ℃) | 5 bar(at 25 ℃) |
| Material | stainless steel 316L | stainless steel 316L | stainless steel 316L |

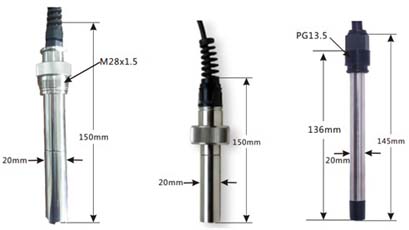

| Dimensions | Ø 20 x 150 mm | Ø 20 x 150 mm | Ø 12 x 145 mm |
| ounting | M28 x 1.5 | flange | PG 13.5 |
| cable length | 5 m | 5 m | 5 m |
| Applications | Power plant, etc. | Fermentation and chemical
processes such as wine making, etc. |
Waste Water, sewage
water, swimming pool, etc. |
- Power plant
- Fermentation and chemical processes such as wine making
- Swimming pool, fish pond, etc
- Waste Water
