Muffle Furnace FM
- Overview
- Specifications
- Applications
- Download
- 1, Features:
Chamber is made from fiber thermal insulation plates,embedded heating elements are inside the chamber. Outside casing-metal sheet, powder painted. Door opens upwards, and Door safety interlock switch. ceramic hearth plates,protection against overheating, Buzzer.
2, Controllers:
(1), CC101, non-programmable, 2 steps in a program.
(2), CC102, non-programmable, 8 steps in a program.
(3), CC103, 5 programs, 8 steps in a program.
(4), CC104, 8 programs, 32 steps in a program.
3, Optional:
(1), Data recorder(PC Software)
(2), Temperature calibration.
(3), Digital Timer.
Specifications:
| Type | Volume | Temperature | Internal dimensions mm |
External dimensions mm |
Weight | Power Consumption |
Power Supply |
| FM-03 | 3 L | 1100 ℃ | 120W x 200D x 104H | 346W x 472D x 432H | 18 kg | 1700 W | 230V, 50Hz |
| FM-03A | 3 L | 1100 ℃ | 120W x 200D x 104H | 346W x 522D x 432H | 18 kg | 1700 W | 230V, 50Hz |
| FM-8 | 8.1 L | 1100 ℃ | 194W x 310D x 134H | 446W x 660D x 496H | 26 kg | 1800 W | 230V, 50Hz |
| FM-8A | 8.1 L | 1100 ℃ | 194W x 310D x 134H | 446W x 712D x 496H | 29 kg | 1800 W | 230V, 50Hz |
| FM-13 | 13 L | 1100 ℃ | 220W x 334D x 168H | 506W x 686D x 556H | 37 kg | 1800 W | 230V, 50Hz |
| FM-13A | 13 L | 1100 ℃ | 220W x 334D x 168H | 506W x 736D x 556H | 39 kg | 1800 W | 230V, 50Hz |
| FM-22 | 22 L | 1100 ℃ | 280W x 498D x 158H | 606W x 856D x 620H | 60 kg | 3000 W | 230V, 50Hz |
| FM-22A | 22 L | 1100 ℃ | 280W x 498D x 158H | 606W x 906D x 620H | 61 kg | 3000 W | 230V, 50Hz |
- *FM-03A, FM-8A, FM-13A, FM-22A: Fan-assisted chimney for ashing
- *Height without chimney height
- Material Testing
- Heat Treatment
- Ashing

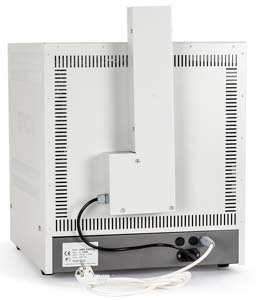

- Picture 1

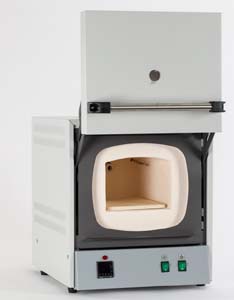

- Picture 2

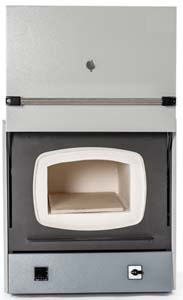

- Picture 3
