Muffle Furnace FH-30
- Overview
- Specifications
- Applications
- Download
- 1, Features:
Chamber is made from fiber thermal insulation plates,embedded heating elements are inside the chamber. Outside casing-metal sheet, powder painted. Door opens to the right, and Door safety interlock switch. ceramic hearth plates,protection against overheating, Buzzer.
2, Controllers:
(1), CC101, non-programmable, 2 steps in a program.
(2), CC102, non-programmable, 8 steps in a program.
(3), CC103, 5 programs, 8 steps in a program.
(4), CC104, 8 programs, 32 steps in a program.
3, Optional:
(1), Data recorder(PC Software)
(2), Temperature calibration.
(3), Digital Timer.
Specifications:
| Type | Volume | Temperature | Internal dimensions mm |
External dimensions mm |
Weight | Power Consumption |
Power Supply |
| FH-30H | 30L | 1300℃ | 200W x 439D x 290H | 642W x 872D x 842H | 121 kg | 4600 W | 230V,50Hz |
| FH-30HA | 30L | 1300℃ | 200W x 439D x 290H | 646W x 922D x 836H | 121 kg | 4600 W | 230V,50Hz |
| FH-30L | 30L | 1100℃ | 300W x 404D x 274H | 646W x 872D x 836H | 97 kg | 3400 W | 230 V,50Hz |
| FH-30LA | 30L | 1100℃ | 300W x 404D x 274H | 646W x 922D x 836H | 97 kg | 3400 W | 230 V,50Hz |
- *FH-30HA and FH-30LA: Fan-assisted chimney for ashing
- *Height without chimney height
- Material Testing
- Heat Treatment
- Ashing

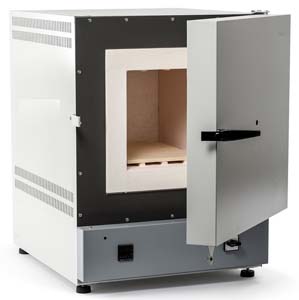

- Picture 1

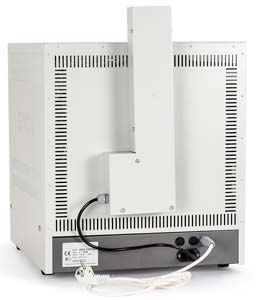

- Picture 2
