Muffle Furnace(combustion loss determination) FED13
- Overview
- Specifications
- Applications
- Download
- 1, Features:
It is designed for combustion loss determination (loss on ignition) with the assistance of added balances, which weigh the materials before, during, and after the process. It is used with a variety of materials like, for example, sediment, sludge, soil, waste, or inorganic materials such as cement, lime, calcinated bauxite.Chamber is made from fiber thermal insulation plates,embedded heating elements are inside the chamber. Outside casing-metal sheet, powder painted. Door opens upwards, and Door safety interlock switch. ceramic hearth plates, protection against overheating, Buzzer.
2, Controllers:
(1), CC101, non-programmable, 2 steps in a program.
(2), CC102, non-programmable, 8 steps in a program.
(3), CC103, 5 programs, 8 steps in a program.
(4), CC104, 8 programs, 32 steps in a program.
3, Optional:
(1), Data recorder(PC Software)
(2), Temperature calibration.
(3), Digital Timer.
Specifications:
| Type | Volume | Temperature | Internal dimensions mm |
External dimensions mm |
Weight | Power Consumption |
Power Supply |
| FED13 | 13 L | 1100 ℃ | 220W x 334D x 168H | 500W x 692D x 880H | 56 kg | 1800 W | 230V,50Hz |
- *Height without chimney height
- Combustion loss determination (loss on ignition)
- Ashing

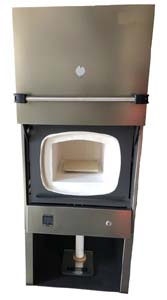

- Picture 1
